백엔드/Spring(Boot)

스프링 Swagger 설치

by 김어찐 2021. 10. 29.
728x90
package com.danal.snack.swagger;

import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.validation.Errors;
import org.springframework.web.servlet.config.annotation.EnableWebMvc;
import org.springframework.web.servlet.config.annotation.ResourceHandlerRegistry;
import org.springframework.web.servlet.config.annotation.WebMvcConfigurer;
import springfox.documentation.builders.ApiInfoBuilder;
import springfox.documentation.builders.PathSelectors;
import springfox.documentation.builders.RequestHandlerSelectors;
import springfox.documentation.service.ApiInfo;
import springfox.documentation.service.Contact;
import springfox.documentation.spi.DocumentationType;
import springfox.documentation.spring.web.plugins.Docket;

@Configuration
@EnableWebMvc
// 접속 url : http://localhost:8080/swagger-ui/index.html
public class SwaggerConfig implements WebMvcConfigurer {
    /**
     * Swagger를 위한 Docket 빈을 추가한다.
     *
     * @return
     */
    @Bean
    public Docket api() {
        final ApiInfo apiInfo = new ApiInfoBuilder()
                .title("STUDIT REST API")
                .description("<h3>STUDIT에서 사용되는 RestApi에 대한 문서를 제공한다.</h3>")
                .contact(new Contact("STUDIT", "https://studit.com", "studit@studit.com"))
                .license("MIT License")
                .version("1.01")
                .build();

        return new Docket(DocumentationType.SWAGGER_2)
                .ignoredParameterTypes(Errors.class)// Swagger 2.0 기반의 문서 작성
                .apiInfo(apiInfo)                             // 문서에 대한 정보를 설정한다.
                .select()                                    // ApiSelectorBuilder를 반환하며 상세한 설정 처리
                .apis(RequestHandlerSelectors.basePackage("com.danal.snack"))// 대상으로하는 api 설정
                .paths(PathSelectors.any())
                .build();                                    // Docket 객체 생성
    }

    @Override
    public void addResourceHandlers(ResourceHandlerRegistry registry) {
        registry.addResourceHandler("/swagger-ui/**")
                .addResourceLocations("classpath:/META-INF/resources/webjars/springfox-swagger-ui/");
    }
}

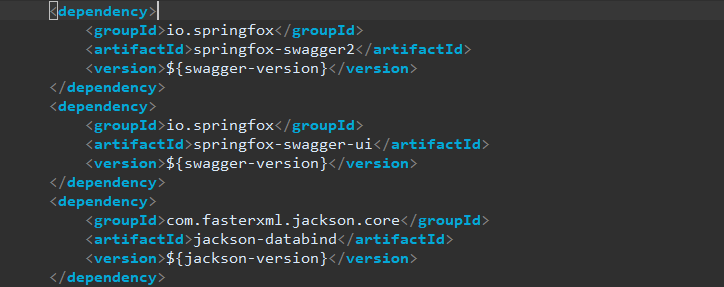

springfox-swagger2, springfox-swagger-ui,  jackson-databind 설치

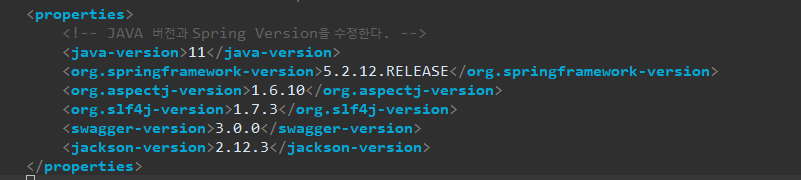

버전



SwaggerConfig 등록

package com.ssafy.ws.config;

import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.web.servlet.config.annotation.EnableWebMvc;
import org.springframework.web.servlet.config.annotation.ResourceHandlerRegistry;
import org.springframework.web.servlet.config.annotation.WebMvcConfigurer;

import springfox.documentation.builders.ApiInfoBuilder;
import springfox.documentation.builders.PathSelectors;
import springfox.documentation.builders.RequestHandlerSelectors;
import springfox.documentation.service.ApiInfo;
import springfox.documentation.service.Contact;
import springfox.documentation.spi.DocumentationType;
import springfox.documentation.spring.web.plugins.Docket;
import springfox.documentation.swagger2.annotations.EnableSwagger2;

@Configuration
@EnableSwagger2
//@EnableWebMvc//스프링 부트에서는 X(무조건),스프링에서는 필수!
public class Swagger2Config implements WebMvcConfigurer {
  /**
   * Swagger를 위한 Docket 빈을 추가한다.
   *
   * @return
   */
  @Bean
  public Docket api() {
    final ApiInfo apiInfo = new ApiInfoBuilder()
      .title("SSAFY 도서관리 API")
      .description("<h3>워크샵에서 사용되는 RestApi에 대한 문서를 제공한다.</h3>")
      .contact(new Contact("SSAFY", "https://edu.ssafy.com", "ssafy@ssafy.com"))
      .license("MIT License")
      .version("1.01")
      .build();

    return new Docket(DocumentationType.SWAGGER_2)        // Swagger 2.0 기반의 문서 작성
      .apiInfo(apiInfo)                             // 문서에 대한 정보를 설정한다.
      .select()                                    // ApiSelectorBuilder를 반환하며 상세한 설정 처리
      .apis(RequestHandlerSelectors.basePackage("com.ssafy.ws.controller"))// 대상으로하는 api 설정
      .paths(PathSelectors.ant("/**/bookapi/**"))    // controller에서 swagger를 지정할 대상 path 설정
      .build();                                    // Docket 객체 생성
  }

  @Override
  public void addResourceHandlers(ResourceHandlerRegistry registry) {
    registry.addResourceHandler("/swagger-ui/**")
      .addResourceLocations("classpath:/META-INF/resources/webjars/springfox-swagger-ui/");
  }
}



설정 해준 컨트롤러에 RestController 작성

package com.ssafy.ws.controller;

import java.lang.System.Logger;
import java.util.List;

import org.slf4j.LoggerFactory;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.http.HttpStatus;
import org.springframework.http.ResponseEntity;
import org.springframework.web.bind.annotation.CrossOrigin;
import org.springframework.web.bind.annotation.DeleteMapping;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.ModelAttribute;
import org.springframework.web.bind.annotation.PathVariable;
import org.springframework.web.bind.annotation.PostMapping;
import org.springframework.web.bind.annotation.PutMapping;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RestController;

import com.ssafy.ws.model.dto.Book;
import com.ssafy.ws.model.dto.SearchCondition;
import com.ssafy.ws.model.service.BookService;

import io.swagger.annotations.ApiOperation;


@RestController
@RequestMapping("/bookapi/2")
@CrossOrigin("*")
public class BookRestController {



	@Autowired
	BookService bookService;

	@ApiOperation(value = "조건에 맞는 도서 목록 반환",response = Book.class)
	@GetMapping("/book/{id}")
	public ResponseEntity<?> select(@PathVariable String id){
		try {
			Book book = bookService.select(id);
			if(book !=null) {
				return new ResponseEntity<Book>(book,HttpStatus.OK);
			}
			else {
				return new ResponseEntity<Void>(HttpStatus.NO_CONTENT);
			}
		} catch (Exception e) {
			return exceptionHandling(e);
		}
	}
	@GetMapping("/book")
	@ApiOperation(value = "조건에 맞는 도서 목록 반환",response = Book.class)
	public ResponseEntity<?> select(@ModelAttribute SearchCondition condition){
		try {
			List<Book> books = bookService.search(condition);
			if(books!=null && books.size()>0) {
				return new ResponseEntity<List<Book>>(books,HttpStatus.OK);
			}
			else {
				return new ResponseEntity<Void>(HttpStatus.NO_CONTENT);
			}
		} catch (Exception e) {
			return null;
		}
	}

	@PostMapping("/book")
	@ApiOperation(value = "객체 저장함",response = Integer.class)
	public ResponseEntity<?> insert(Book book){
		try {
			bookService.insert(book);
			int result=1;
			return new ResponseEntity<Integer>(result,HttpStatus.CREATED);
		} catch (Exception e) {
			return exceptionHandling(e);
		}
	}

	@PutMapping("/book")
	@ApiOperation(value = "Book 객체 수정함",response = Integer.class, notes = "객체를 수정합니다")
	public ResponseEntity<?> update(Book book){
		try {
			bookService.update(book);
			int result=0;
			if(result==0) {
				return new ResponseEntity<Integer>(result,HttpStatus.NO_CONTENT);
			}
			else {
				return new ResponseEntity<Integer>(result,HttpStatus.CREATED);
			}

		} catch (Exception e) {
			return exceptionHandling(e);
		}
	}

	@ApiOperation(value = "Book 객체 삭제",response = Integer.class, notes = "기록을 삭제합니다.")
	@DeleteMapping("/book/{id}")
	public ResponseEntity<?> delete(@PathVariable Integer id){
		try {
			bookService.delete(id);
			int result = 0;
			if(result==0) {
				return new ResponseEntity<Integer>(result,HttpStatus.NO_CONTENT);
			}
			else {
				return new ResponseEntity<Void>(HttpStatus.CREATED);
			}
		} catch (Exception e) {
			return exceptionHandling(e);
		}
	}

	public ResponseEntity<String> exceptionHandling(Exception e){
		e.printStackTrace();
		return new ResponseEntity<String>("미안 : "+e.getMessage(),HttpStatus.INTERNAL_SERVER_ERROR);

	}
}

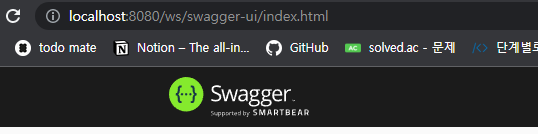

http://localhost:8080/ws/swagger-ui/index.html

접속





스프링 부트에서 설정

그레들 추가

implementation("io.springfox:springfox-boot-starter:3.0.0")
implementation("io.springfox:springfox-swagger-ui:3.0.0")

Config 파일

package com.danal.snack.config;

import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.web.servlet.config.annotation.EnableWebMvc;
import org.springframework.web.servlet.config.annotation.ResourceHandlerRegistry;
import org.springframework.web.servlet.config.annotation.WebMvcConfigurer;
import springfox.documentation.builders.ApiInfoBuilder;
import springfox.documentation.builders.PathSelectors;
import springfox.documentation.builders.RequestHandlerSelectors;
import springfox.documentation.service.ApiInfo;
import springfox.documentation.service.Contact;
import springfox.documentation.spi.DocumentationType;
import springfox.documentation.spring.web.plugins.Docket;

@Configuration
@EnableWebMvc
public class SwaggerConfig implements WebMvcConfigurer {
    /**
     * Swagger를 위한 Docket 빈을 추가한다.
     *
     * @return
     */
    @Bean
    public Docket api() {
        final ApiInfo apiInfo = new ApiInfoBuilder()
                .title("SSAFY 도서관리 API")
                .description("<h3>워크샵에서 사용되는 RestApi에 대한 문서를 제공한다.</h3>")
                .contact(new Contact("SSAFY", "https://edu.ssafy.com", "ssafy@ssafy.com"))
                .license("MIT License")
                .version("1.01")
                .build();

        return new Docket(DocumentationType.SWAGGER_2)        // Swagger 2.0 기반의 문서 작성
                .apiInfo(apiInfo)                             // 문서에 대한 정보를 설정한다.
                .select()                                    // ApiSelectorBuilder를 반환하며 상세한 설정 처리
                .apis(RequestHandlerSelectors.basePackage("com.danal.snack"))// 대상으로하는 api 설정
                .paths(PathSelectors.any())  // controller에서 swagger를 지정할 대상 path 설정)
                .build();                                    // Docket 객체 생성
    }

    @Override
    public void addResourceHandlers(ResourceHandlerRegistry registry) {
        registry.addResourceHandler("/swagger-ui/**")
                .addResourceLocations("classpath:/META-INF/resources/webjars/springfox-swagger-ui/");
    }
}
